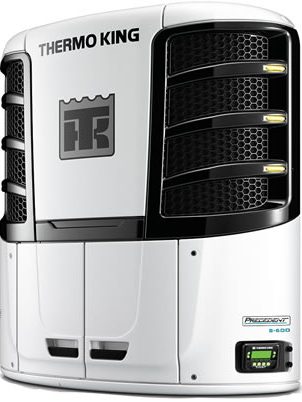

PRECEDENT®

The Precedent® platform utilizes an all-new DDE (Diesel Direct Electric) architecture to drive optimum efficiencies and double-digit fuel savings across real-world applications. It’s a smarter approach, with the expressed goal of making a lasting difference on your budget. In addition to brand-new technologies, there are also some familiar components residing within the Precedent architecture. The well-proven X-430 reciprocating compressor provides the performance and reliability Thermo King is famous for and, when combined with the new architecture, delivers better operating efficiencies than ever before.

precedent

Advantages

  • Proven Diesel Direct Architecture
    Drives optimum efficiencies and double-digit fuel savings while ensuring minimal energy loss when compared to an all-electrical solution.
  • Common Rail Fuel Injection
    Meets all known emissions standards without the need for an expensive after-treatment system.
  • Advanced Condenser System
    Unique micro-channel condenser coils more than double the surface area to improve airflow and eliminate “dead spots” across the entire structure.
  • Comprehensive Support
    Every Precedent® unit is backed by the Thermo King Dealer Network with over 200 locations across North America.

The Precedent® line of TRUs gives you the ability to be “evergreen” in meeting Tier 4 Final Emissions Standards and California Air Resource Board’s ULETRU standards by selecting the S-600. Thermo King also offers similar performance in the C-600 TRU which is CARB compliant for up to seven years. Either unit is going to bring outstanding operational performance while delivering double-digit fuel savings.

Diesel Engine Power

Dimensions
  • 83.5″H X 81.7″W X 23.9″D
Refrigeration Capacity: (BTU/hr)
  • 35° – 59,000
  • 0° – 34,000
  • -20° – 21,000
Heating Capacity* (BTU/hr)
  • 35/0° ambient – 53,000
Airflow Capacity
  • 3,300ft3/min
Engine
  • TK488 – four cylinder, direct injection, liquid cooled (Compliant with Final Tier 4 EPA Emissions Regulations Standards)
  • Hp Rating at 2200 RPM – 24.0
  • Oil Capacity – 12 qt
  • Maintenance Interval – 3,000hrs
Compressor
  • XL430L
  • Displacement – 30.0in3
Refrigerant (Zero Ozone Depletion Potential (ODP), internationally approved)
  • Charge – 14.5lbs
System Weight
  • System – 1,863lbs
  • 50 gallon fuel tank w/bracket -76lbs

Optional Electric Standby Power

Refrigeration Capacity: (BTU/hr)
  • 35° – 45,000
  • 0° – 26,000
  • -20° – 15,000

Diesel Engine Power

Dimensions
  • 85″H X 82″W X 23″D
Refrigeration Capacity: (BTU/hr)
  • 35° – 60,000
  • 0° – 32,000
  • -20° – 20,000
Heating Capacity* (BTU/hr)
  • 35/0° ambient – 50,000
Airflow Capacity
  • 3,300ft3/min
Engine
  • TK488CR – four cylinder, direct injection, liquid cooled (Compliant with Final Tier 4 EPA Emissions Regulations Standards)
  • Hp Rating at 2200 RPM – 33.0
  • Oil Capacity – 12 qt
  • Maintenance Interval – 3,000hrs
Compressor
  • X430L
  • Displacement – 30.0in3
Refrigerant (Zero Ozone Depletion Potential (ODP), internationally approved)
  • R404A
  • Charge – 14.5lbs
Weight
  • System – 1,857lbs
  • 50 gallon fuel tank w/bracket -76lbs

Optional Electric Standby Power

Refrigeration Capacity: (BTU/hr)
  • 35° – 30,000
  • 0° – 22,000
  • -20° – 15,000
